Product Introduction
The Model P118i Ultrasonic Flowmeter is a state-of-the-art universal transit-time flowmeter designed using ARM technology and low-voltage broadband pulse transmission. While principally designed for clean liquid applications, the instrument is tolerant of liquids with the small amounts of air bubbles or suspended solids found in most industrial environments. With distinctive features such as high precision, high reliability, high capability and low cost, the flowmeter features other advantages:
1. With ARM COMA chip, low power consumption, high reliability, anti-jamming and outstanding benefits.
2. Clear, user-friendly Menu selections make flowmeter simple and convenient to use. U.S., British and Metric measurement units are available. Meanwhile, almost all-universal measurement units worldwide may be selected to meet customer's requirements.
3. With the TF card, 1000 files can be stored; the time interval can be within 1 second.
Product Parameter

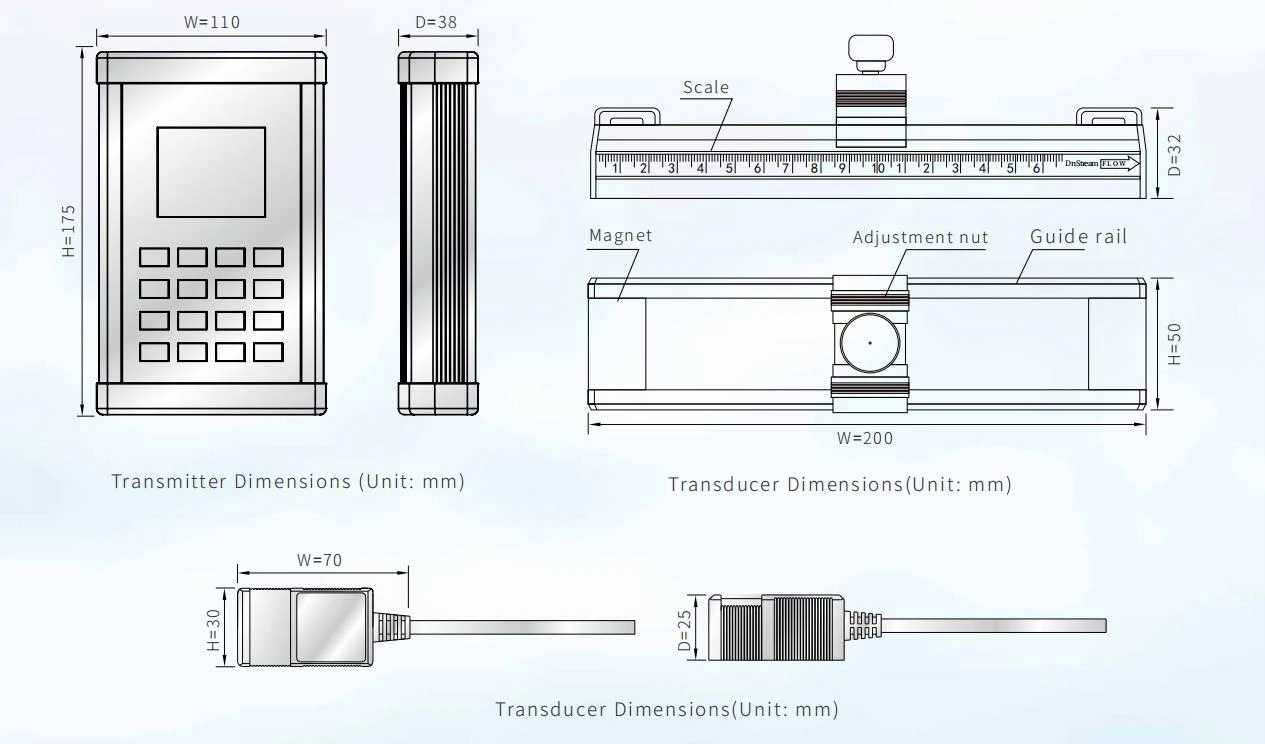

1)Body Parameters

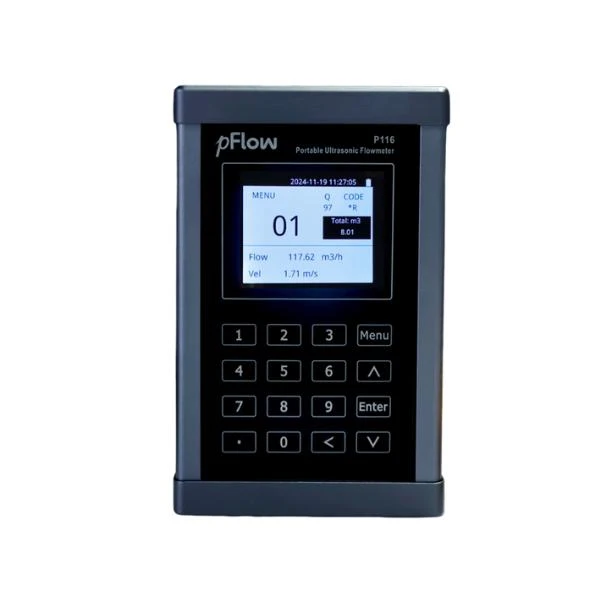

2)Appearance
3)Technical Parameters
|
Performance Index |
|
|
Flow range |
(0.03 ~ 16) ft/s (0.01 ~ 5) m/s |
|
Accuracy |
±1.0% of measured value.(0.5 m/s～5 m/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
1" ~ 32" (25mm～800mm) |
|
Pipe Material |
Carbon Steel,Stainless Steel,PVC,Copper |
|
Measurement medium |
Water |
|
Functional Index |
|
|
Communication Interface |
RS485, Support MODBUS RTU, FUJI protocol. |
|
Output |
Analog output: 4 ~ 20 mA, ( max load 500 Ω ). Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ). |
|
TF card |
Storage: 16GB (To prevail in kind); Max: 1000 files; Interval: 1 ~ 60 seconds. |
|
Keypad |
Tactile Keys |
|
Display |
2.8" TFT black and white screen 240×320, with backlight LCD display |
|
Power Supply |
10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃~ 50℃) Transducer: 32°F to 176°F (0℃~ 80℃,standard ) |
|
Physical Characteristics |
|
|
Transmitter |
NEMA13 ( IP54 ) |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m |
|
Weight |
Transmitter: approximately 0.7kg Transducer: (including transducer rail): 1.2kg |
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: What is a cooling flow meter?
A: The flow meter measures the amount of cooling lubricant used for internal and external tool cooling. The sensor can be installed at different locations in the machine tool pipe system.
2.Q: How to monitor coolant temperature?
A: A cooling meter is usually located on the dashboard of the vehicle and displays the temperature of the engine coolant. This indicator will let you know if the engine coolant is cold, normal, or overheated.
3.Q: What are the cooling system functions?
A: Maintaining a constant engine temperature.
4.Q: What components does the cooling system consist of?
A: The main components of the cooling system are the flowmeter, water pump, antifreeze plugs, thermostat, radiator, cooling fan, heater core, pressure cap, overflow tank and hoses
5.Q: What are the installation and maintenance precautions for P116 Flowmeter?
A: During installation, attention should be paid to the direction of fluid flow, requirements for straight pipeline sections, etc.; during maintenance, equipment should be regularly calibrated and sensors cleaned to ensure normal operation of the equipment.
