Product Introduction

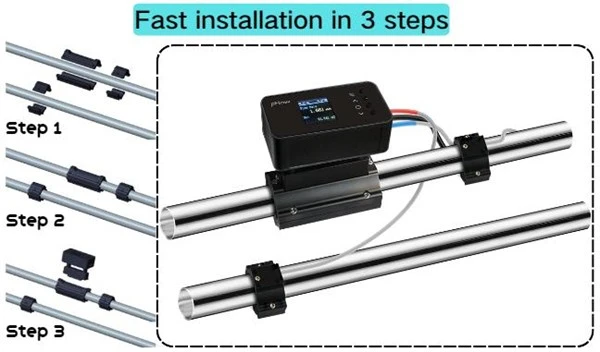

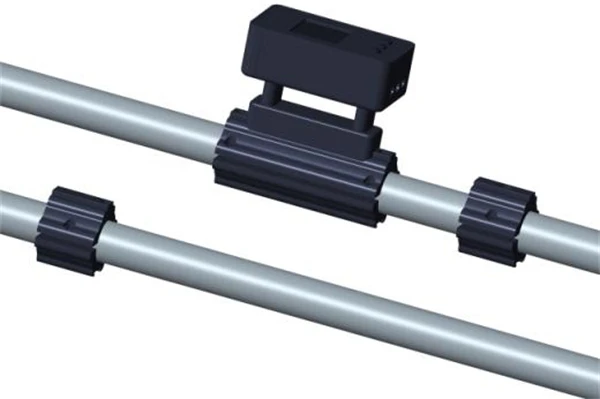

For our data flow meter, the clever clamp-on design ensures easy installation, while cutting-edge ultrasonic technology guarantees accurate, non-intrusive measurements. Elevate efficiency in industrial and commercial settings with reliable and user-friendly solutions, complemented by seamless integration through RS485 and 4-20mA outputs for versatile system connectivity. Redefine accuracy and simplicity across diverse applications.
Product Parameter
|
Product Parameter |
|||
|
Flow Range: |
0.03~5.0m/s |
Accuracy: |
±2% (1.0~16ft/s standard condition) |
|
Repeatability: |
0.2% |
Pipe Diameter Range (Optional): |
DN20~DN80 (21~91mm) |
|
Measuring Medium: |
Water |
Pipe Material (Optional): |
Carbon Steel, Stainless Steel, PVC, Copper |
|
Outputs: |
RS485 (FUJI or MODBUS Protocol) 4-20mA |
Power Supply: |
10～36VDC/500mA (Available to wired power supply adapter) |
|

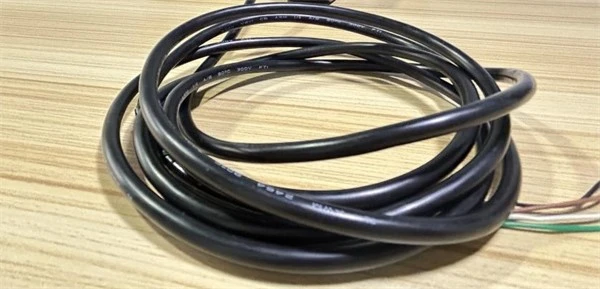

Cable Wires |
φ5 six core cable, standard length: 2m (Extension cable is available) |
IP Rating: |
IP54 |
|
Flow Sensor Fluid Temperature |
32°F to 140°F (0°C to 60°C) |

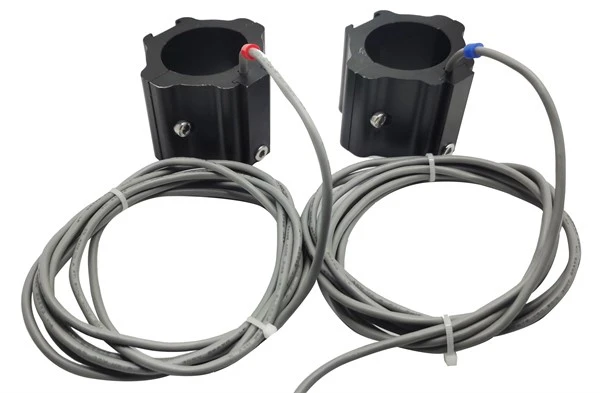

Temperature sensor PT1000 Fluid Temperature |
32°F to 212°F (0°C to 100°C) |
|
Product Details |
Payment & Shipping Terms |
|
Place of Origin: Shenzhen, China |
Minimum Order Quantity: 1 |
|
Brand Name: pflow |
Packaging Details: Conventional Packaging |
|
Certification: ISO:9001, ISO:14001, CE |
Delivery Time: 1-3 working days |
|
Model Name: E3CL |
Payment Terms: T/T |
Product Features

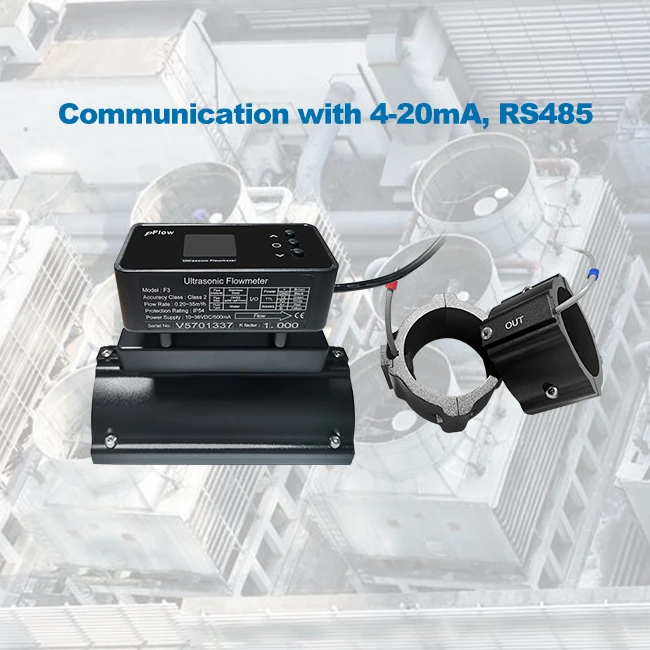

In addition to being an ultrasonic flow meter, our data flow meter E3CL is also an ultrasonic BTU flow meter. To satisfy the typical demands of consumers, it makes use of 4-20mA and RS485 outputs. Specifically engineered to accommodate pipes ranging from DN20 to DN80, this product offers exceptional performance to clients in the HVAC, BMS, and associated sectors. In order to reach IP54 level, we selected ABS+PC material taking into account the application environment of the customer. Therefore, accurate data can be obtained in the measurement environment from 14°F to 122°F.
Applications
The data flow meter E3CL finds applications across diverse sectors, excelling in HVAC systems, Building Management Systems (BMS), Industrial Processes, Renewable Energy Systems, District Heating, Utilities, Research and Development, Commercial Facilities. E3CL offer versatility in applications where accurate measurement of thermal energy transfer is crucial for operational efficiency and resource conservation.
Product details

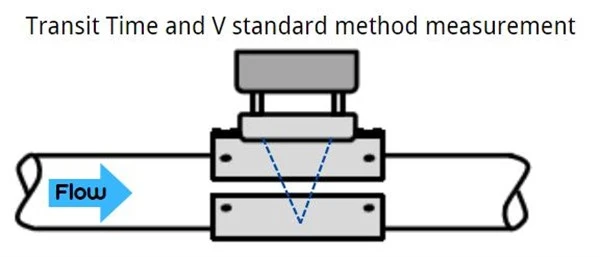

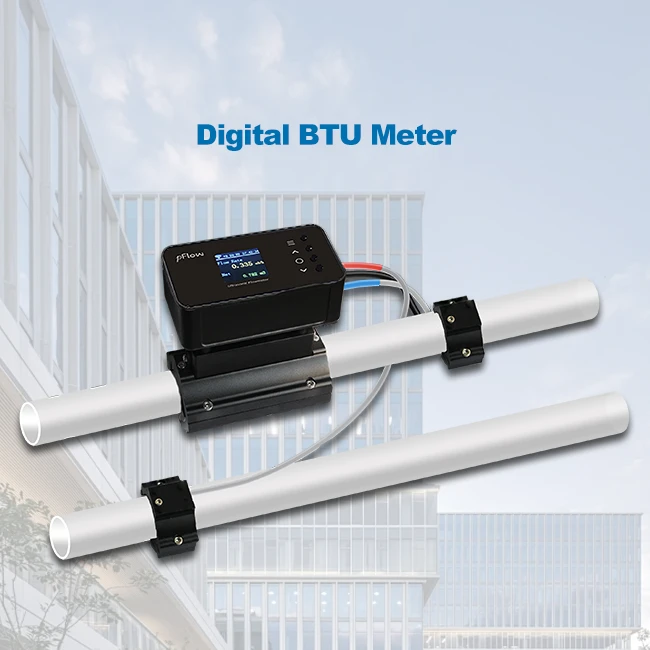

Our ultrasonic BTU flow meter E3CL, is a data flow meter solution for precise thermal energy measurement. Using ultrasonic Transit-Time technology, it excels in HVAC systems, industrial processes, and renewable energy applications. With a measurement range accommodating various pipe sizes, DN20 to DN80, it ensures accuracy. Outputs include 4-20mA and RS485 for seamless integration. Crafted with durable materials, it operates reliably in temperatures ranging from 14°F to 122°F. Ideal for optimizing energy usage in diverse sectors.
Product Qualification
Gentos is dedicated to collaborating with customers to optimize the utilization of fluid resources, offering solutions for energy conservation, emissions reduction, and precise measurement. Their advanced transit-time patent technology enables the application of ultrasonic flow meters in a wide range of industries, including petroleum, water resources, chemical, urban heating, power, and research institutions. Gentos places great emphasis on employee development, providing a transparent promotion system and comprehensive training opportunities. In terms of team organization, Gentos encourages the growth of experienced professionals while gradually incorporating managerial expertise at different levels, resulting in a balanced mix of fresh and seasoned personnel and ensuring the company's continuous and robust progress.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Gentos prioritises customer convenience by implementing an expeditious delivery system, ensuring timely product reception. Orders are fulfilled and products distributed within a commendable timeframe of 2 to 3 days. Gentos offers a comprehensive selection of transportation and express delivery alternatives to cater to every customer's preferences.
FAQ
Q: What is variable flow meter ?
A: A variable flow meter measures fluid flow, providing real-time data with output varying based on flow rate. Common in water management, HVAC, BMS, and manufacturing for flow monitoring.
Q: What is flow rate data ?
A: Flow rate data refers to real-time information about the volume of fluid passing through a system per unit of time, measured by a flow meter. It is crucial for monitoring and controlling fluid processes.
Q: What are the different types of flow rate meters ?
A: Ultrasonic Flow Meters, Turbine Flow Meters, Coriolis Flow Meters, Vortex Flow Meters, Mass Flow Meters...
Q: Why is it important to measure flow rate ?
A: Measuring flow rate is vital for efficient process control, resource management, quality assurance, energy optimization, environmental compliance, utilities management, leak detection, research, billing accuracy, and safety across diverse applications.
