Introducing the D118i – the pinnacle of precision and versatility in ultrasonic flow measurement. This state-of-the-art instrument boasts an expansive, high-resolution display, coupled with an intuitive user-friendly menu interface, making it an ideal choice for a wide range of flow monitoring applications.
Designed for accuracy and reliability, the D118i offers unparalleled performance in measuring liquid flow rates, ensuring that every measurement is precise down to the finest detail. Its robust construction and advanced technology make it suitable for demanding industrial environments, where precision is paramount.
One of the key highlights of the D118i is its flexibility in sensor configurations. Users can choose between the convenient clamp-on transducers for non-invasive installation on existing piping, eliminating the need for pipeline shutdowns or modifications. Alternatively, the insertion-type probes offer a direct, inline measurement solution for situations requiring even higher accuracy or where access to the pipe interior is feasible.
The large, ultra-clear display not only provides instant visual feedback on flow rates but also allows for easy navigation through the menu system, making configuration and monitoring a breeze. The user-centric design ensures that even first-time users can quickly grasp the functionality and start making accurate measurements in no time.
Product Parameter
Body Parameters
TRANSMITTER DIMENSIONS
TRANSDUCER (C011)

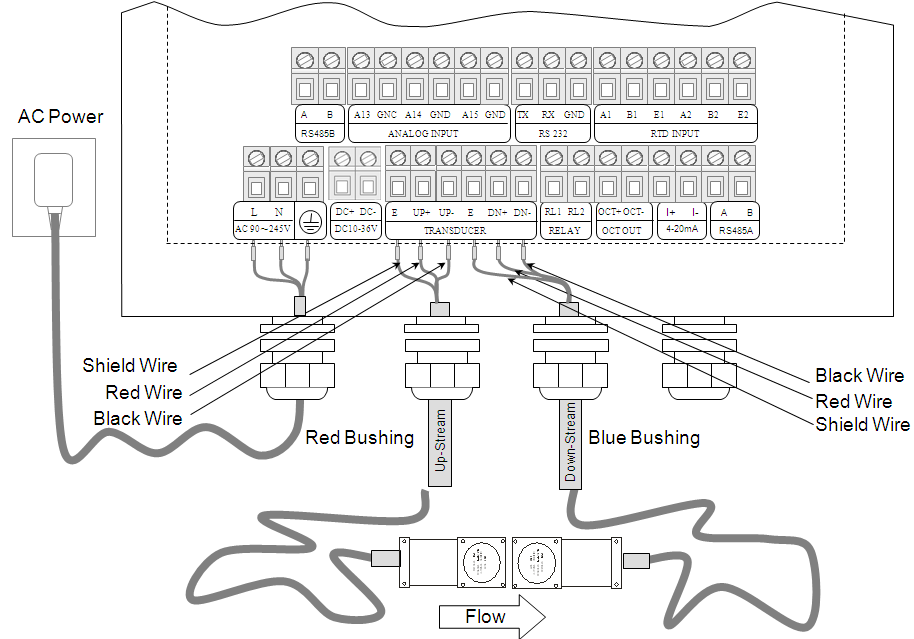

Wring diagram

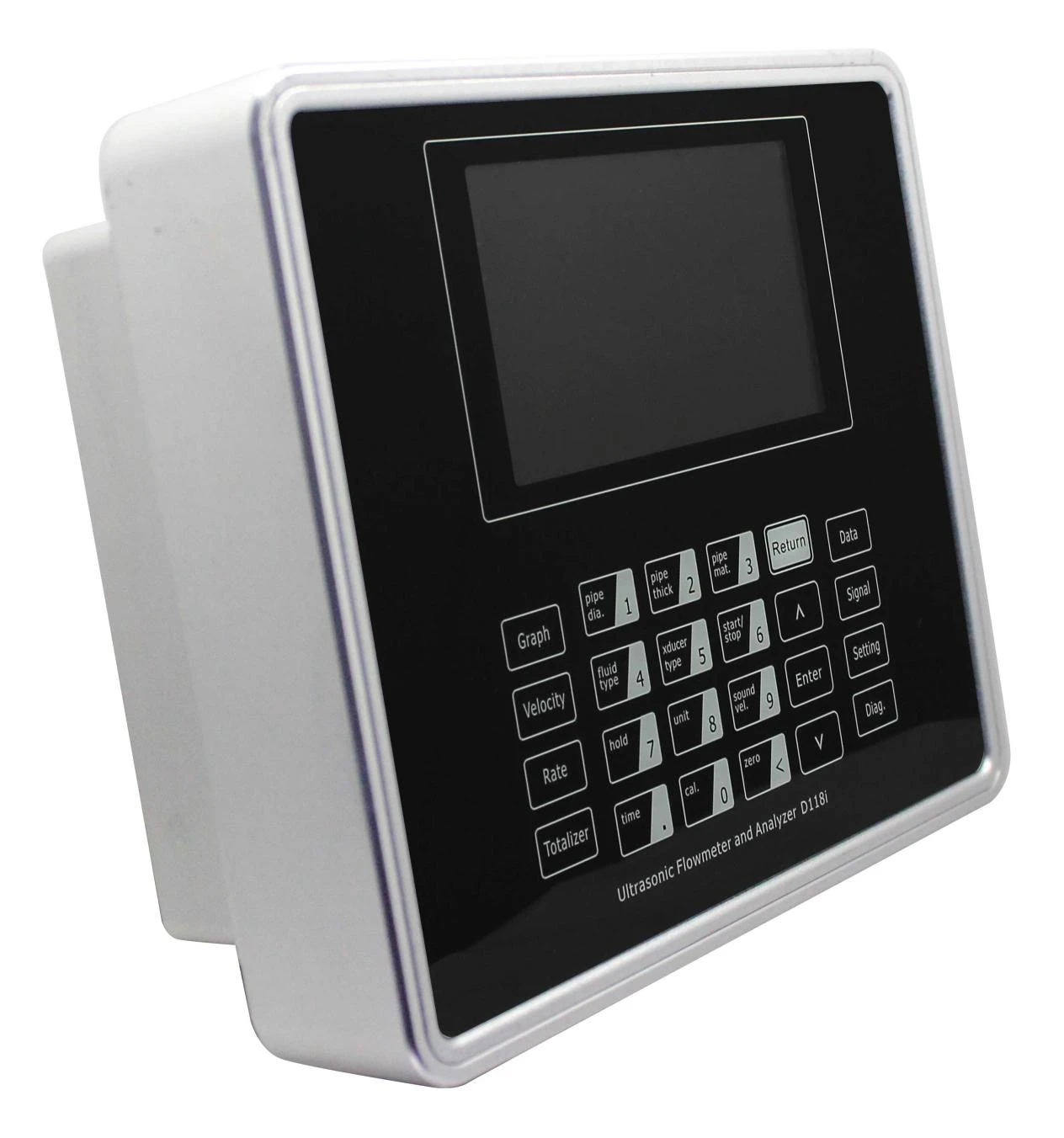

Appearance
Technical Parameters
|
Performance Index |
|
|
Flow range |
±0.03ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s) |
|
Accuracy |
±0.5% of measured value (for ±1.5ft/s~±40ft/s) |
|
Repeatability |
0.1% of measured value |
|
Medium |
Water |
|
Pipe Size |
1" to 200"(25mm to 5000mm) |
|
Functional Index |
|
|
Outputs |
Analog output: 4~20mA, maximum 750 . Pulse output: 0~9999Hz, OCT output, (adjustable) Realy output: the highest 1Hz,(1A@125VAC or 2A@30VDC) |
|
Power supply |
90 to 250 VAC, 48 to 63 Hz. Or 10 to 36VDC |
|
Communication Interface |
RS232&RS485 Communication Interface, Support Modbus Protocol |
|
Keypad |
24 light tactile keys |
|
Display screen |
4.7 inch TFT color screen |
|
Humidity |
Up to 99% RH,non-condensing |
|
Temperature |
Transmitter: 14℉~140℉(-10℃~60℃) Transducer(C011): -40℉~176℉(-40℃~80℃,standard) |
|
IP |
IP68 |
|
Physical Characteristics |
|
|
Transmitter |
Die-cast aluminum,IP65,CNC machined |
|
Transducer |
Encapsulated design, protection grade IP68 The standard length of cable: 9m Material: 304 stainless steel |
Product Applications
Application: D118i
Pipe material: PVC
Pipe size: DN32
Liquid: Water
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Quick Response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: What is the difference between a flow meter and a water meter?
A1: A flow meter is a device used to measure the rate of flow of a fluid (such as water, gas, or oil) in a pipeline or system. A water meter is a specific type of flow meter designed to measure the volume of water passing through a pipe
Q2: Which type of flowmeter is used for measuring water flow?
A2: The type of flow meter commonly used for measuring water flow is a water meter. Water meters are specifically designed flow meters that are calibrated to accurately measure the volume of water passing through a pipe. They are widely used by utility companies to monitor water consumption for billing purposes in residential, commercial, and industrial settings. Water meters come in various types, including mechanical (such as positive displacement and turbine meters) and electronic (such as electromagnetic and ultrasonic meters), each with its own advantages and applications.
Q3: How does water flow meter work?
A3: Water flow meters work by measuring the velocity of the water flow and then calculating the volume of water passing through the meter based on this velocity and the cross-sectional area of the pipe
Q4: How does an inductive flow meter work?
A4: Inductive flow meters work by inducing a voltage in a conductive fluid as it flows through a magnetic field. This induced voltage is then measured to determine the flow rate of the fluid passing through the meter.
Q5: How do I choose a water flow meter?
A5:When selecting a water flow meter, consider the following steps:Confirm the Properties of the Detection Fluid;Clarify the Purpose of Measurement;Confirm Product Specifications etc.
