Product Introduction

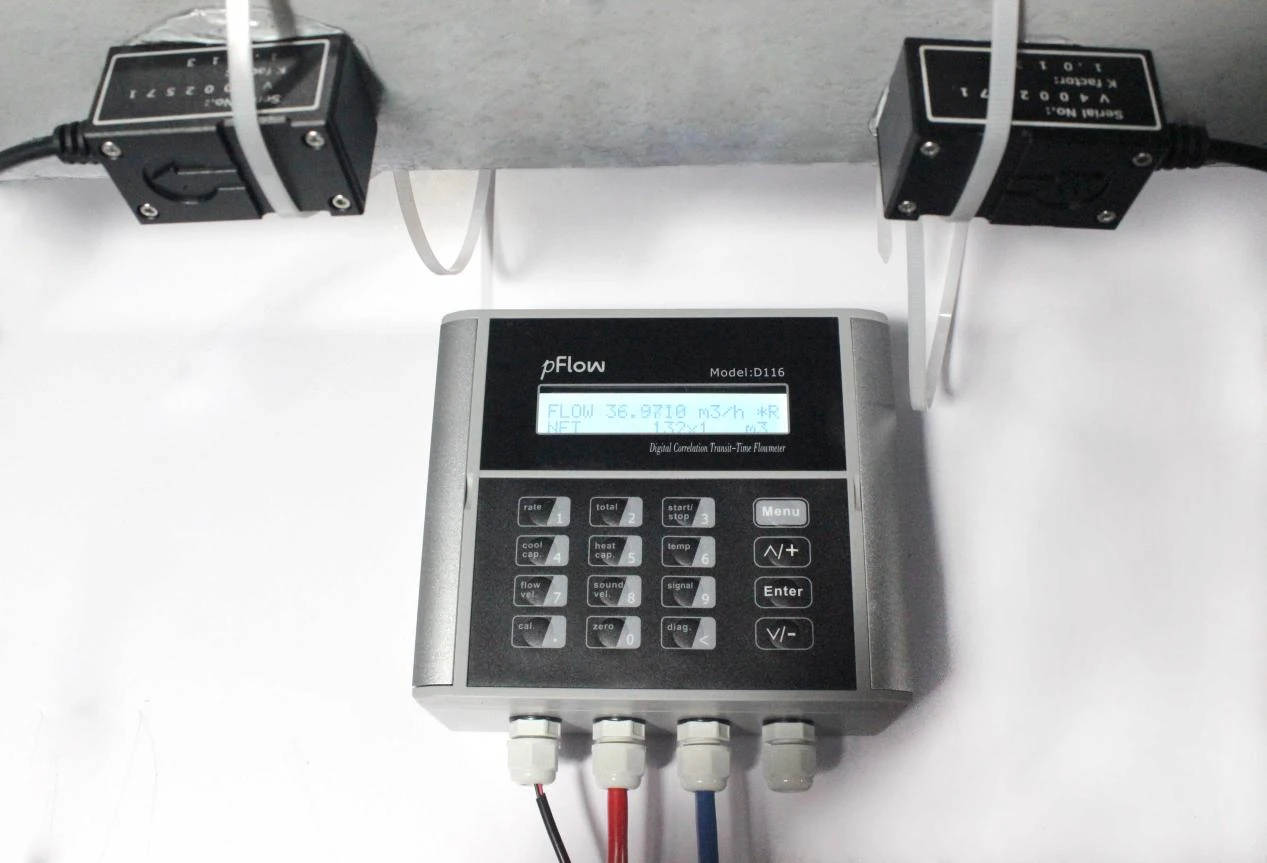

The D116-PT1000 clamp-on BTU flow meter is a type of flow meter that can be attached externally to a pipe without the need for cutting or modifying the pipe. It uses ultrasonic technology to measure the flow rate and heat by clamping onto the outside of the pipe and transmitting ultrasonic signals through the pipe wall.
Brief Introduction
- Accuracy:±1.0% of measured value
- Energy accuracy: ±2%
- Measuring range:0℃ ~ 80℃
- Pipe size range:DN25~DN1200mm (1" to 48")l
- Output: OCT, Relay, RS485, 4-20mA
- Power supply: 10-36V DC@1Amax
- Standard cable length: 30ft(9m)
- Enclosure protection class(Transducers): IP68
Product Applications
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Water and wastewater management
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
1.Q: How to use ultrasonic energy meter in HVAC industry
A: Ultrasonic energy meter provides an effective means for measuring air conditioning water system, and has good use effect in air conditioning engineering testing, commissioning work and air conditioning circulating water measurement.
2.Q: What are the advantages of ultrasonic energy meter?
A: Advantages include non-invasive measurement, high accuracy, not easily affected by fluid properties, suitable for various fluids, low maintenance requirements, etc.
3.Q: How do you install a flowmeter?
A: Follow the manufacturer's installation instructions.
4.Q: How to choose the right flowmeter model for you?
A: Please contact our technical sales with the product you are interested in, after confirming your pipe material and pipe diameter, we will recommend the most suitable flow meter model for you.
5.Q: Can this water meter track water usage?
A:Yes. It's the ultimate smart water meter designed to transform the way you use water and your budget. Use this water meter to conveniently monitor and track water usage and detect water leaks in real time!
Hot Tags: d116 ultrasonic energy flow meter for hvac, China d116 ultrasonic energy flow meter for hvac manufacturers, suppliers, factory, Heat Energy Meter, BTU Meter in HVAC, IoT control valve, measurement of industrial waste water flow, Industrial Ultrasonic Flow Meters, MeterTube Platform
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow range |
0.03 ~ 16 ft/s ( 0.01 ~ 5.0 m/s ) |
|
Accuracy |
Flow accuracy: ±1% (0.5~5m/s standard condition) Energy accuracy: ±2% |
|
Fluid |
Water(chilled water,pure water,clean water,sea water,hot water,etc.) |
|
Pipe Size |
Clamp-on type: 25mm to 1,200mm (1" to 48") |
|
Pipe Material |
Stainless Steel, Carbon Steel, Copper,PVC |
|
Functional Index |
|
|
Communication Interface |
RS485 MODBUS |
|
Output |
Analog output : 4 ~ 20mA, (max load 750Ω) Pulse output: 0~9999 Hz, OCT ( min. and max. frequency is adjustable ) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
Input Interface |

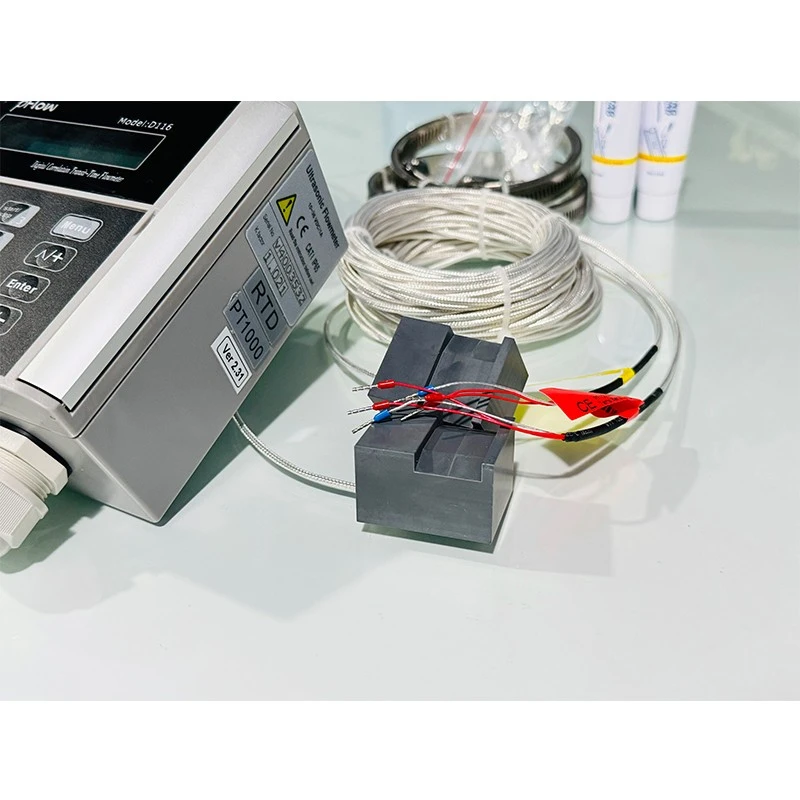

2*PT1000 interface, Three-wire system; 0~100℃(32～212℉) |
|
Power supply |
10 ~ 36VDC/1A. |
|
Keypad |
16 ( 4×4 ) key with tactile action. |
|
Display screen |
20×2 lattice alphanumeric, back lit LCD. |
|
Humidity |
Up to 99% RH, non-condensing. |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ ) |
|
IP Rating |
IP65 |
|
Physical Characteristics |
|
|
Transmitter |
PC/ABS, IP65 |
|
Transducer |
Encapsulated design, IP68 |
|
Cable |
The standard length of cable: 30ft (9m) Maximum lengthen to 1000ft(305m) |
|
Weight |
Transmitter: approximately 0.6kg Transducer: approximately 0.8kg |
2)Body Parameters

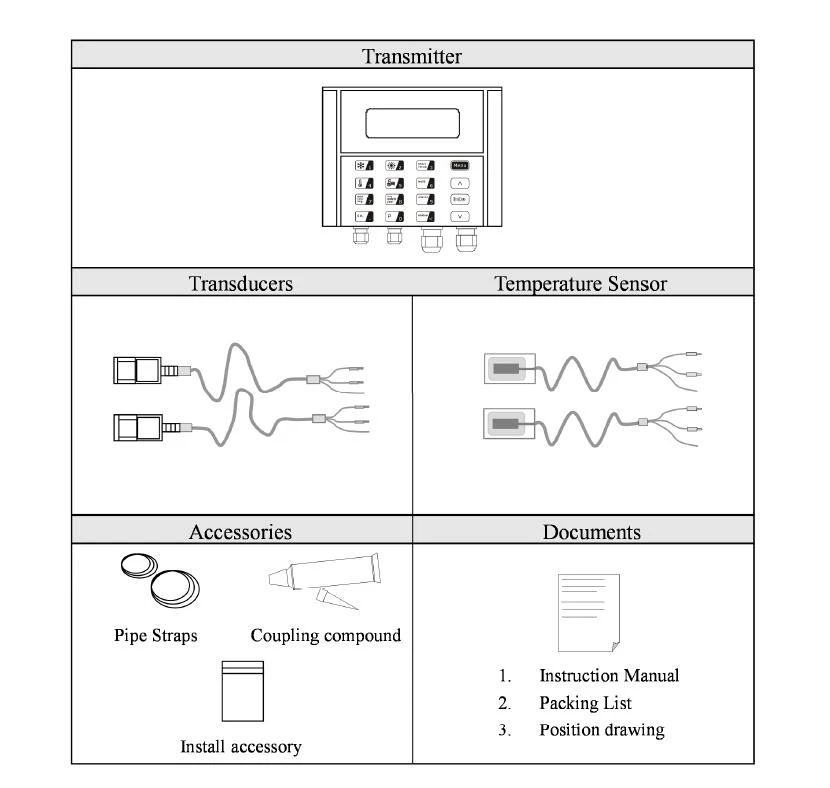

3)Appearance
4)Compatible Pipe Materials
5)Detectable Fluids
