Brief Introduction
|
Accuracy:±0.5% of measured value (for ±1.5ft/s~±40ft/s) |
|
Pipe size:1"~200" (25mm ~5000mm) |
|
Output:Analog output:4~20mA,Max 750 Ω |
|
Communication:WIFI,RS232&RS485 |
PRODUCT INTRODUCTION

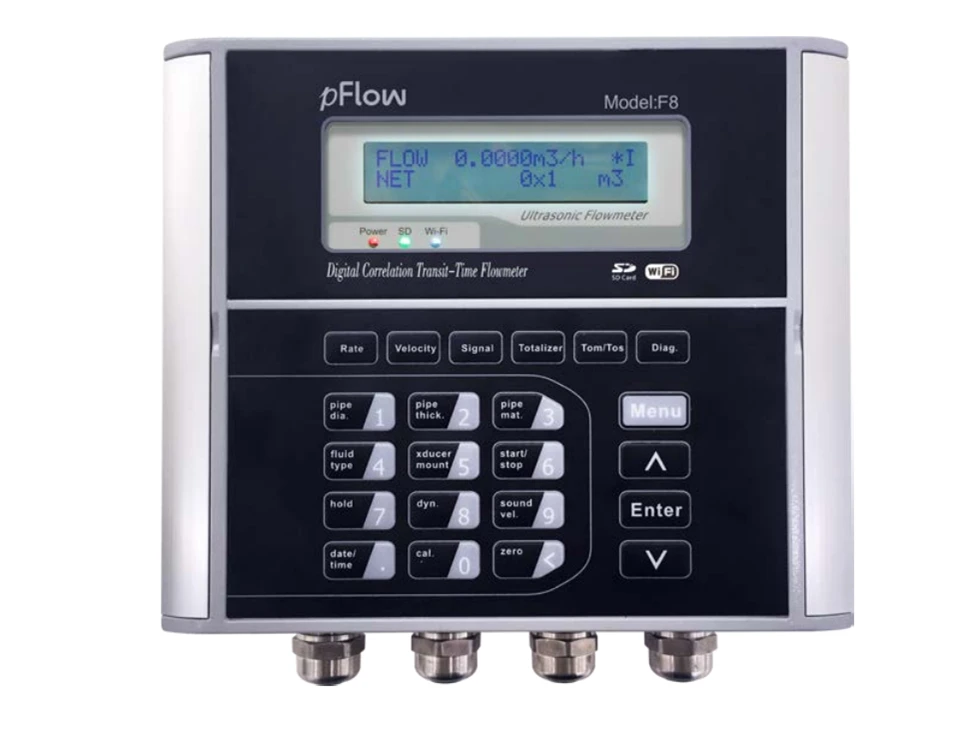

The F8 series ultrasonic energy meter is an advanced transit time flowmeter, utilizing cutting-edge digital technology and low-voltage broadband pulse transmission. Primarily intended for full-pipe clean liquid applications, it can also handle liquids with minor air bubbles or suspended solids common in industrial settings. Compared to traditional flowmeters, it boasts high precision, reliability, capability, and cost-effectiveness. It features TVT technology, minimal hardware components, and low power consumption. Its clear, user-friendly menu simplifies operation. It offers daily, monthly, and yearly flow totals. Positive, negative, and net flow totalizes run in parallel with a scale factor and 7-digit display. Totalize pulse and frequency outputs are sent via relay and open collector.
Product Applications
The F8 Public Water Conveyance Meter with Smart Billing is an advanced solution for water management. It integrates ultrasonic flow measurement with smart billing capabilities. The meter accurately measures water flow and transmits data to a billing system via WiFi or other communication protocols. This enables real-time monitoring, automated billing, and efficient water resource management.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
±(0.03ft/s ~ 40 ft/s) ±(0.01m/s ~ 12 m/s ) |
|
Accuracy |
± 0.5% of measured value. 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Repeatability |
0.15% |
|
Pipe Size |
1″ ~ 200″ ( 25 mm ~ 5000 mm ) |
|
Function Specifications |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ) Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
Communication Interface |
RS232 & RS485 |
|
SD Card ( standard ) |
Max record: 512 days Record time interval: 1 ~ 3600 s |
|
Power Supply |
90 ~ 245 VAC (48 ~ 63 Hz) Or 10 ~ 36 VDC |
|
Keypad |
22 light tactile keys |
|
Temperature |
Transmitter: 14°F ~ 122 °F (- 10℃ ~ 50℃ ) Transducer: -40 °F ~ 176 °F ( - 40 ℃ ~ 80 ℃, standard ) |
|
Physical Characteristics |
|
|
Transmitter |
Die-cast aluminum, IP65 |
|
Transducer |
Encapsulated design. IP68 Standard / Maximum cable length: 30 ft / 1000 ft ( 9m / 305 m ) |
|
Weight |
Transmitter: approximately 4.7 lb ( 2.15 kg ) Transducer: approximately 2.0 lb ( 0.9 kg ). ( standard ) |
2)Body Parameters

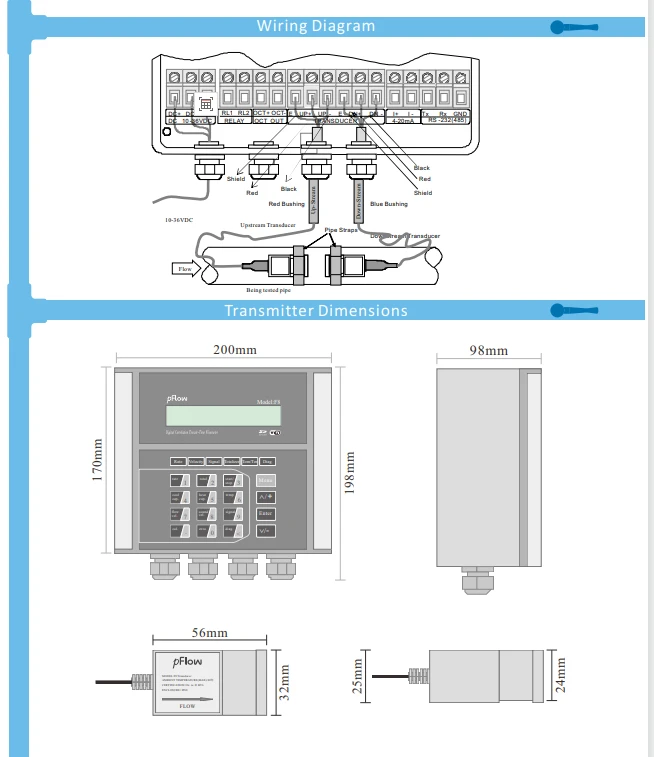

Transmitter Dimension

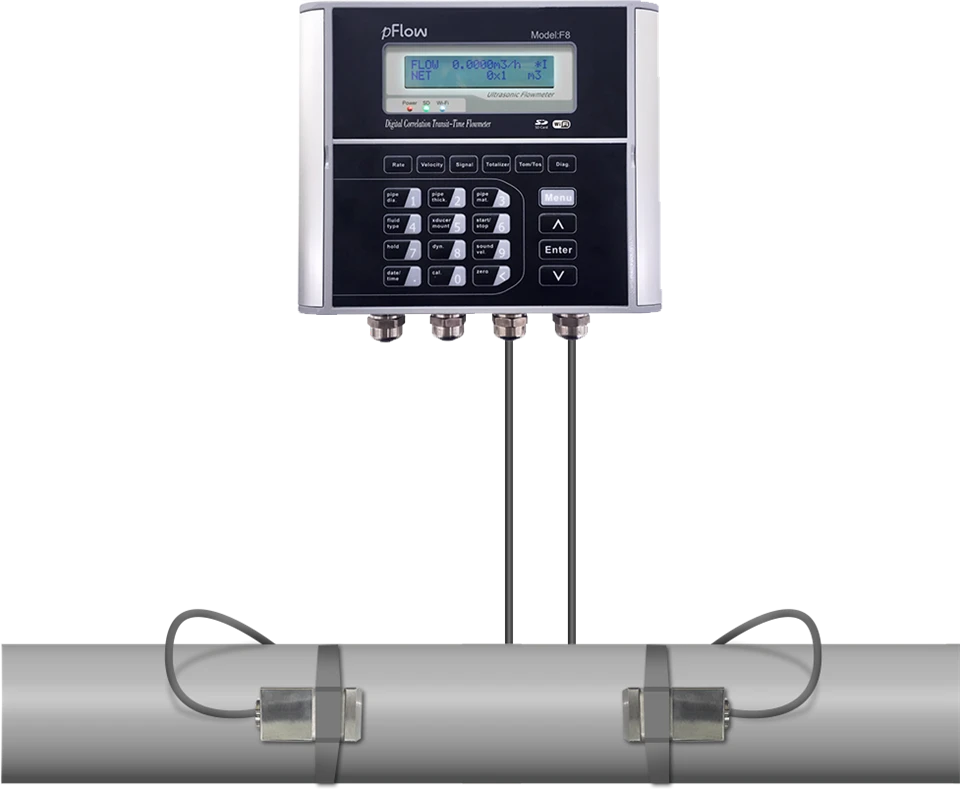

3)Appearance
Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Do you have stock?
A: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q: How to ensure the quality of your products, will the finished product be inspected?
A: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q: How long is your delivery time?
A: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q: Can you give us a discount?
A: We can of course talk to specific numbers, but let's make sure we're on the same page about this solution being a good fit for your needs.
Q: Are you a FACTORY or TRADING COMPANY?
A: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
