Brief Introduction
|
Accuracy: |
±1.0% |
Pipe size : |
Clamp-on:1"~48" (25~1200mm) |
|
Output: |
Analog output: 4~20mA, Max 750 Ω |
IP Rating: |
IP68 transducer |
|
Temperature: |
Transmitter:14°F~122°F(-10℃~50℃) Transducer:40°F~176°F(-40℃~80℃) |
||
Product Introduction

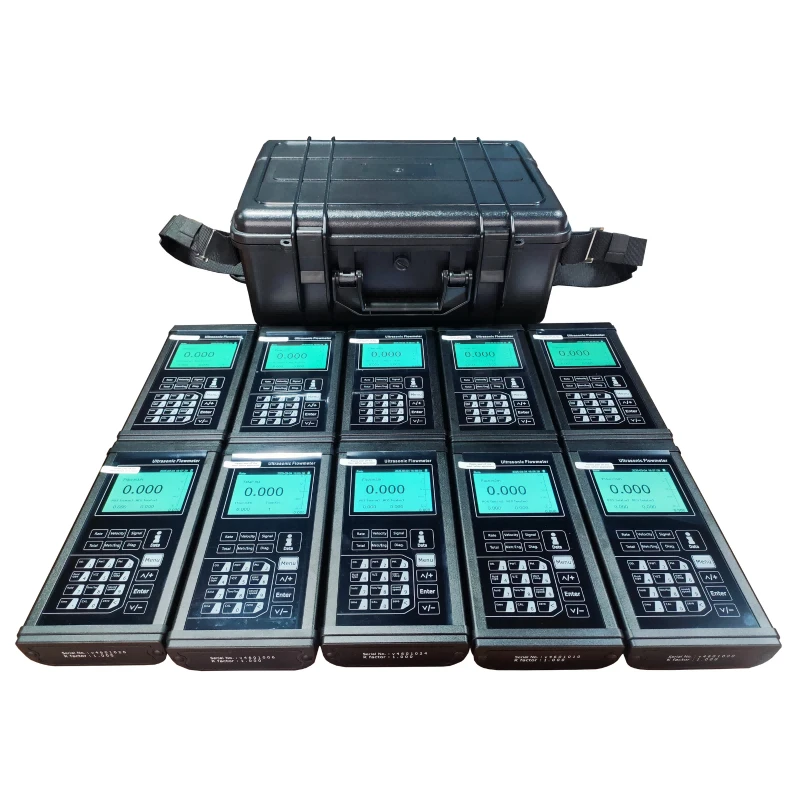

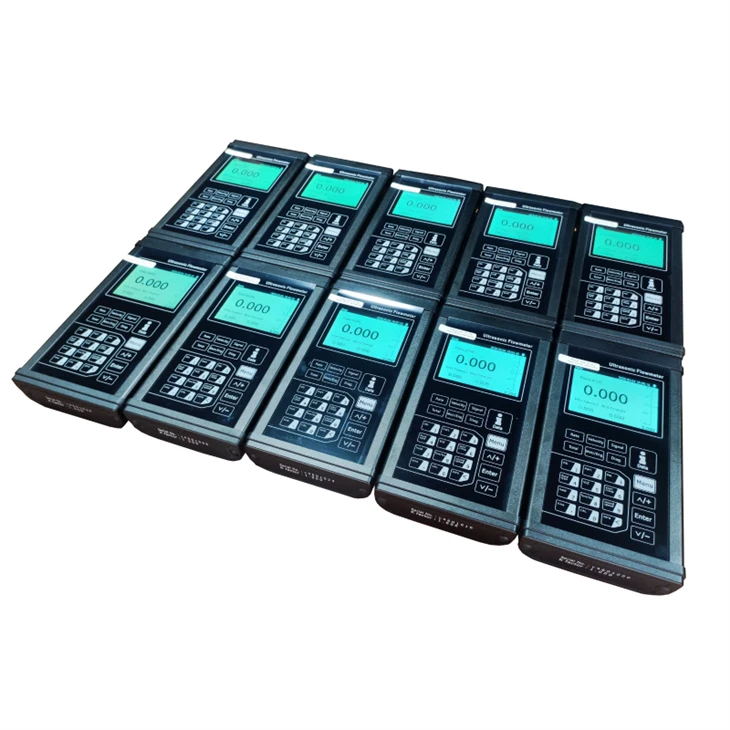

The P117 Portable Ultrasonic Flowmeter is a high-precision, non-contact liquid flow measurement device for city water distribution and industrial processes. Using ultrasonic technology, it measures pipe diameters from 25mm to 1200mm without permanent installation. Its user-friendly interface with a 3.5-inch TFT display ensures easy operation and clear data reading. With a rechargeable lithium battery providing up to 10 hours of continuous operation, 4-20mA analog output, and large data storage capacity, the P117 is ideal for diverse liquid flow measurement needs.
Product Applications
●City Water Distribution
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Specifications |
|
|
Flow range |
±0.03 ~±20 ft/s(±0.01~±6m/s) |
|
Accuracy |
±1% |
|
Repeatability |
0.3% |
|
Linearity |
±1% |
|
Pipe Size |
Clamp-on:1"~48"in(25mm~1200mm) |
|
Pipe Material |
Carbon Steel, Stainless Steel, Cast Iron, Ductile Iron, Copper, PVC, Aluminum, Asbestos, Fiber Glass-Epoxy, Other |
|
Functional Specifications |
|
|
Outputs |
Analog output: 4 ~ 20mA, Max 750Ω. |
|
SD card |
Storage: 8GB Max: 512 files Interval: 1~60 seconds |
|
Power supply |
rechargeable Lithium Battery Power (continuous operation of main battery 10 hours) |
|
Keypad |
Tactile Keys |
|
Display |
3.5 inch TFT screen (320×240), back lit LCD |
|
Temperature |
Transmitter:14°F ~ 122°F (-10℃~50℃) Transducer:40°F~176°F (-40℃~80℃) |
|
Humidity |
0 to 99% RH, non-condensing. |
|
Physical Specifications |
|
|
Transmitter |
NEMA13 (IP54) |
|
Transducer |
Encapsulated design, IP68 Standard cable length: 5m |
|
Weight |
Transmitter: approximately 1.0kg |
|
Package contents |
Suitcase; Transmitter and Transducer; Pipe strips; Coupling compound; Card reader and SD card |

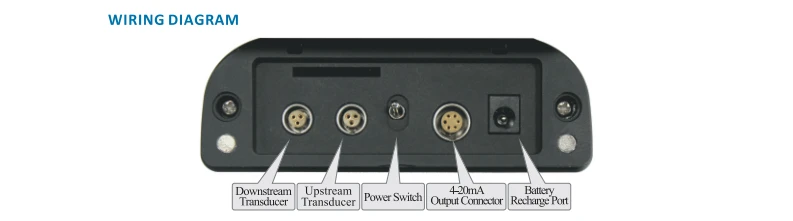

2)Body Parameters

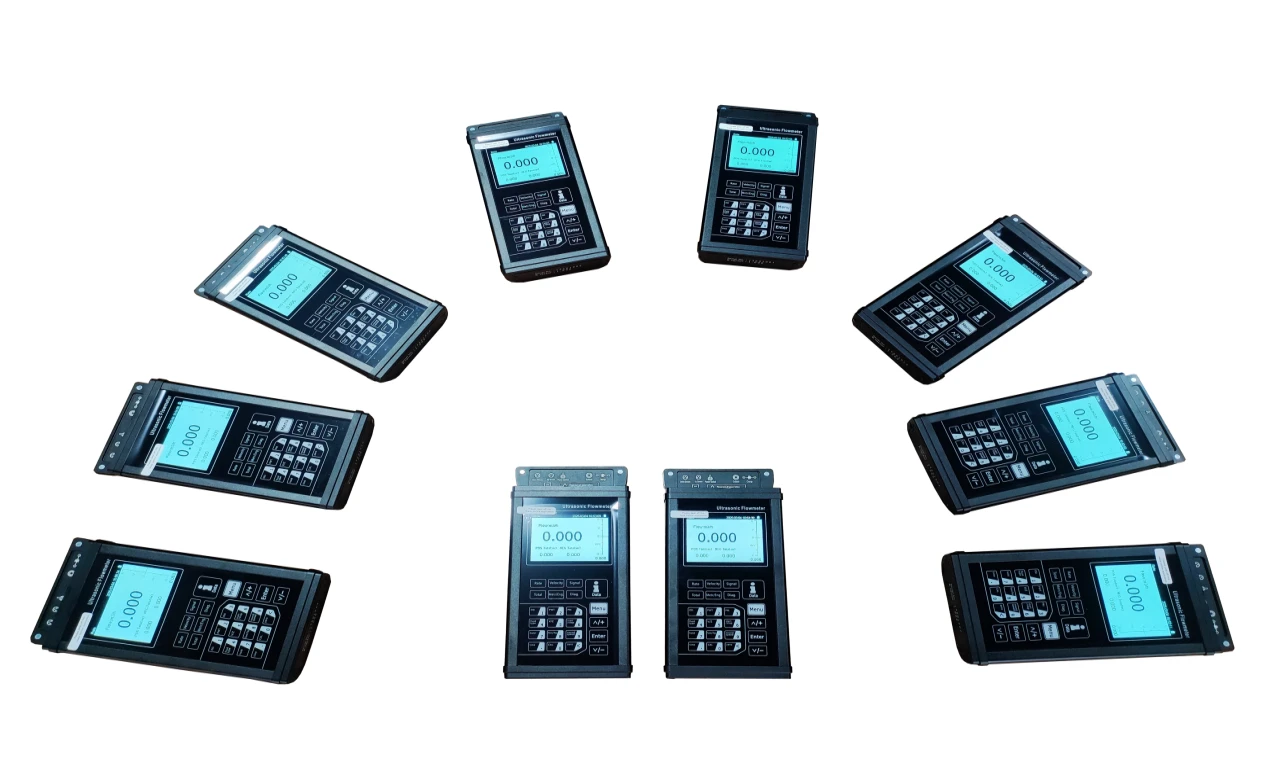

3)Appearance
Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.

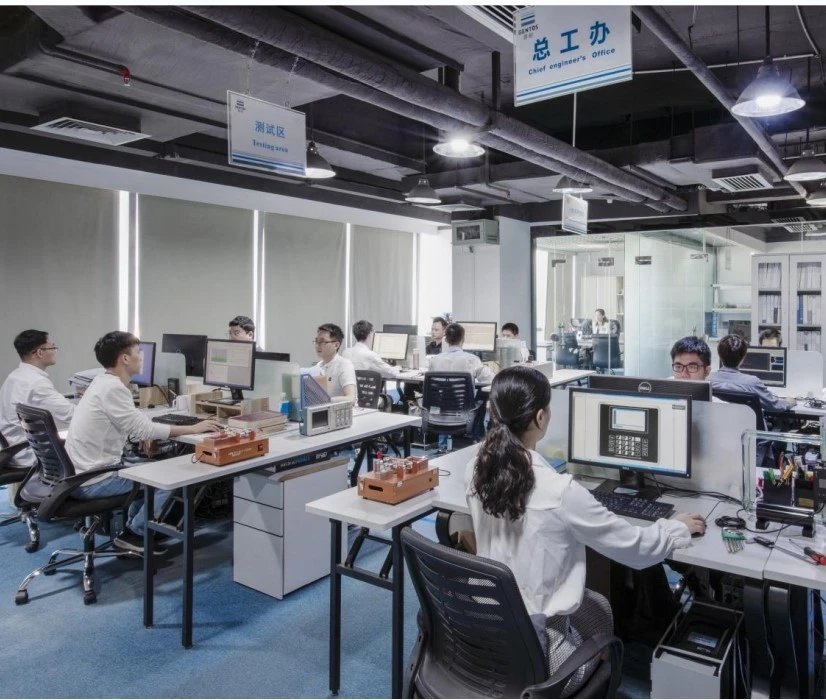

Company environment display:

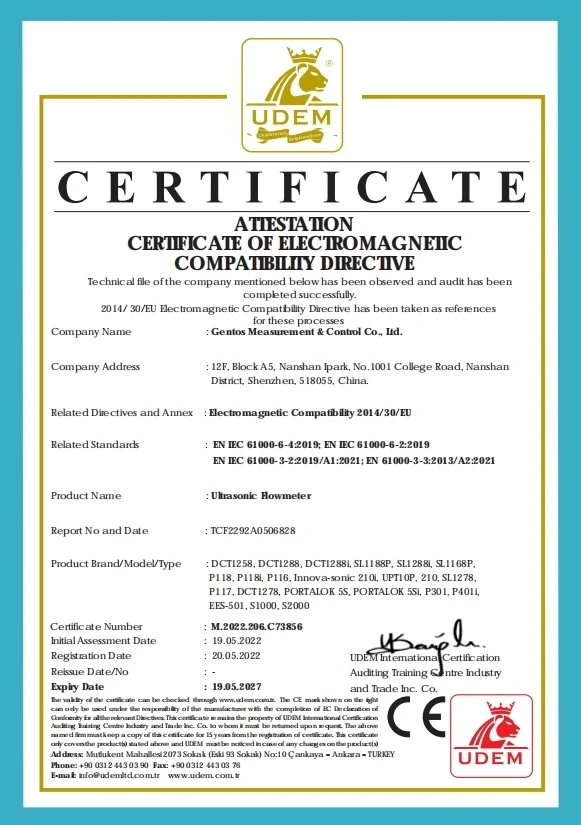

Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
